PROXXON
Digital POSITION INDICATOR (DA-3.1)
Art ID:
24323
Description
PRODUCT DESCRIPTION

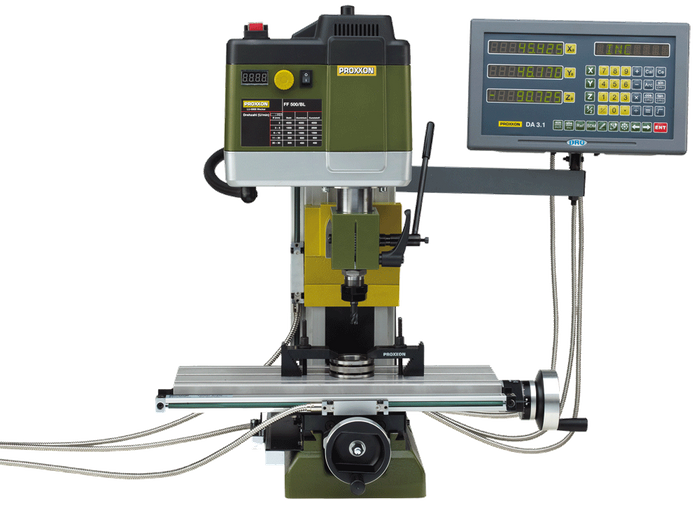

Digital position indicator DA-3.1
With large multi-function display, 3 glass rulers (with one sensor each) and fastening elements.
Reasonable for repetitive machining: A second start point in addition to the zero point can be set anywhere. Most important computing functions:
- Calculation and indication of a centre position
- Basic arithmetic operations
- Positioning of drill holes on any straight lines and circular paths
- Milling of crooked planes
- Milling of radii in different planes
Glass rulers for travel distances: vertical (z-axis) 220mm, transverse (x-axis) 300mm, depth (y-axis) 100mm. With a 200cm metal-sheated plug connecting line to the display.
PRODUCT SPECIFICATION
- Power: 110-230V
- Digital Display: 265 x 182 x 48mm
