PROXXON
Mill & Drill HEAD (PF-230)
Art ID:
24104 #
Description
PRODUCT DESCRIPTION

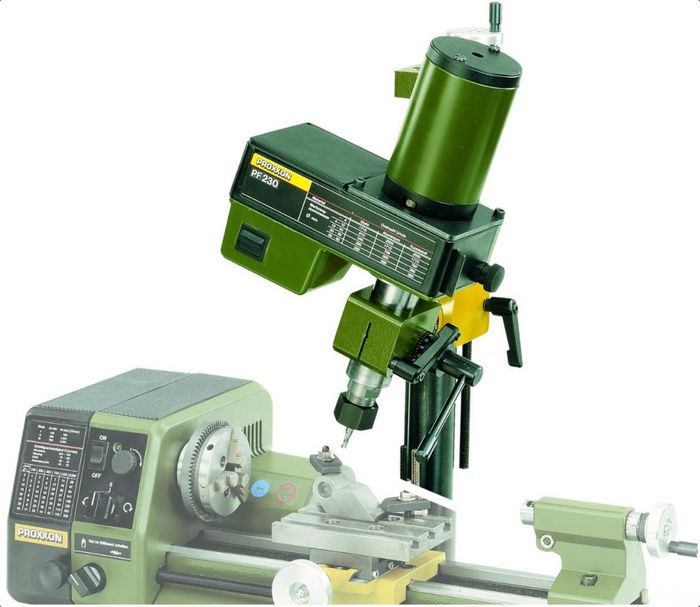

Mill/drill head PF-230 for lathe PD-400
For mounting on the PD-400.
The lathe's top slide is replaced with the table (supplied) of 110 x 70mm, with 3 T-slots 12 x 6 x 5mm.
The lathe now functions as a compound table, with X-Y travel being longitudinally and cross-wise respectively.
The mill/drill head is identical to the miller FF-230.
PRODUCT SPECIFICATION
- Three collets of sizes 6, 8 and 10mm are included.
- Incudes column (35 x 400mm), mounting bracket and fastening screws.
