PROXXON
MILL/DRILL STAND (BFB-2000)
Art ID:
20000
Description
PRODUCT DESCRIPTION

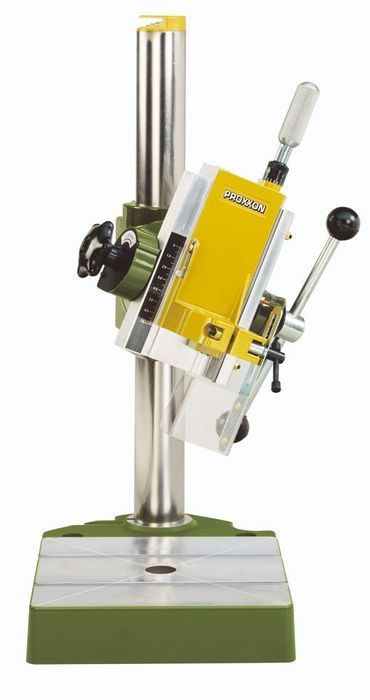

Mill/drill unit BFB-2000
For standard drills with 43mm spindle neck.
Head tilts through 90°, thus offering a multitude of capabilities: Diagonal drilling, versatile milling without need of special milling bits, milling of diagonal slots.
Fine feed selectable allowing fine head feed for milling.
Geared rack and pinion feed for effortless drilling.
Plane-milled, solid base plate approx. 200 x 200mm with two continuous MICROMOT standard T-slots (12 x 6 x 5mm).
Easy clamping of all common drills with standard 43mm spindle collar.
PRODUCT SPECIFICATION
- Drill Column Dia.: 45mm
- Drill Column Length: 500mm
- Approx. 140mm throat (column outside to tool centre)
- Stroke: 65mm w/ dial and depth scale
- Weight: 6.5kg
