Precision LATHE (PD-400)
Description
PRODUCT DESCRIPTION

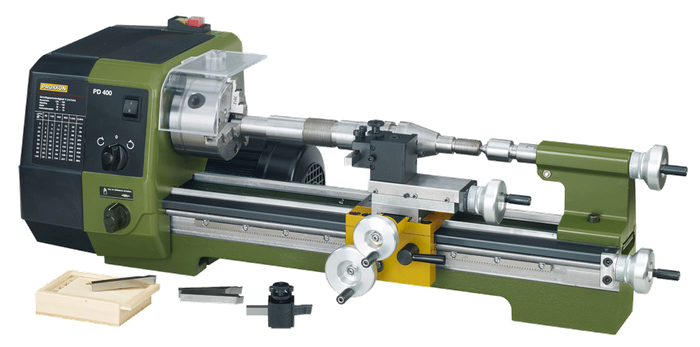

Precision lathe PD-400
Centre distance 400mm. Swing 85mm. Height over cross slide 58mm. For machining steel, brass, aluminium and plastic.
Designed for face and straight turning, taper turning and thread cutting.
With an extensive range of system accessories you can also drill, mill and slot.
Machine bed: Made of high quality cross-braced cast iron with wide-legged, prism slides.
For vibration-free work even at high loads. Fitted with flange and threaded holes at back for fastening the drill and mill head PF-230.
Covered lead spindle.
Headstock: Made of die-cast aluminium. Oversized main spindle with two adjustable taper roller bearings and MK 3 bore on chuck side.
Spindle bore 20.5mm. Run-out without chuck 1/100mm. Rotary switch for engaging the automatic feed (optionally 0.07 and 0.14mm/rev.).
Lead and feed spindle with trapezoid threading (12 x 1.5mm).
Tailstock: Made of die-cast aluminium. Sleeve Ø 24mm, retractable up to 40mm. Fitted with mm scale.
With live centre MK 2 and 10mm gear tooth chuck (B 12 - bore/MK 2).
Support: Bed carriage made of die-cast zinc. Cross slide (adjustment 85mm) and top slide (setting range 52mm) of steel.
Top slide can be swivelled for taper turning (degree graduation up to 45° available).
With multiple tool posts and two tool post elements for quick change and easy height adjustment.
For turning tools 10 x 10mm.
Drive: Powerful capacitor motor for two speeds and additional three-stage belt drive.
Spindle speeds:
- Stage 1: 80 - 330 - 1,400rpm
- Stage 2: 160 - 660 and 2,800rpm
Lathe chuck: High quality 3-jaw chuck as per DIN 6386 Class 1 (concentricity tolerance 0.04mm).
Capacity through reversing chucks 3 - 100mm. Including lathe chuck guard with safety shutdown.
Handwheels: Made of aluminium, with scale ring adjustable to 0.
For cross slide and top slide: 1 division = 0.025mm. 1 rev. = 1mm. For tailstock and lead spindle: 1 graduation line = 0.05mm. 1 rev. = 1.5mm.
Support quick adjustment: By means of large handwheel fastened to bed by toothed rack.
Thread cutting device: For left-hand and right-hand thread. With change gears for 19 different metric pitches: 0.2 , 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5 - 3mm. Also for inch threads from 10 - 48TPI.
PRODUCT SPECIFICATION
- Power: 230V
- Size: 900 x 400 x 300mm
- Weight: 45kg
