MILLER ready for CNC Controller (FF-500/BL-CNC-ready)
Description
PRODUCT DESCRIPTION

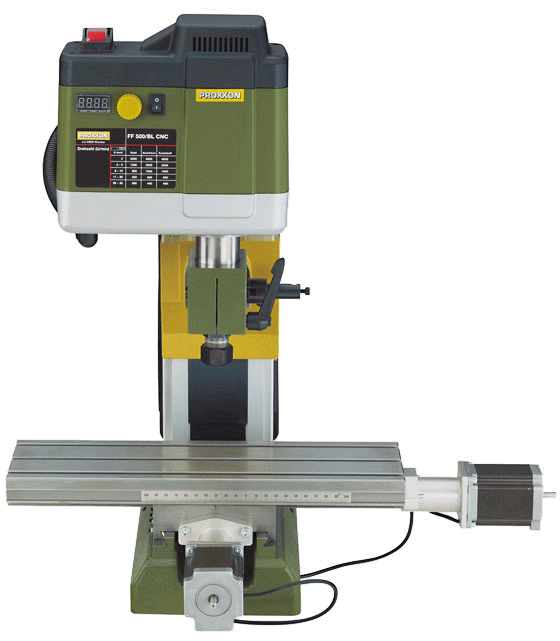

Miller FF-500/BL-CNC-ready
With recirculating ball spindles and powerful step motors at all 3 axes.
Interesting for users who already own a control unit or would like to purchase one from another provider on the market.
Three standard plugs (SUB-D 9POLE) are available to connect the control unit.
With variable speed pre-selection from 200 - 4,000rpm and high precision (accuracy 0.05mm). With digital speed indication.
The sophisticated control via rotor position and speed sensors guarantees high torque for use of large milling cutters in the lower speed range.
Solid column with dovetail guides. Milling head can be rotated to the left and right by 90° (with graduation).
The clampable spindle sleeve is prepared for mounting of the fine feed adapter NO 24254.
Tool holder using multiple range collets type ER 20: One each of 6, 8, 10 and 12mm are included.
Height adjustment of milling head via hand wheel.
Solid plane-milled steel compound table with 3 continuous MICROMOT standard T-slots (12 x 6 x 5mm).
PRODUCT SPECIFICATION
- Power: 230V (400W)
- Spindle Speeds: 200 - 4,000rpm
- Throat: 125mm
- Sleeve Stroke: 30mm
- Column: 120 x 100 x 430mm
- Table: 400 x 125mm
- Range: Transverse vertical (Z-axis) 220mm, transverse (X-axis) 310mm, depth (Y-axis) 100mm
- Dimensions: H:750mm x W: 550mm x D: 550mm
- Weight: 47kg
- CNC Ready
