PROXXON
MILLER (FF-230)
Art ID:
24108 #
Description
PRODUCT DESCRIPTION

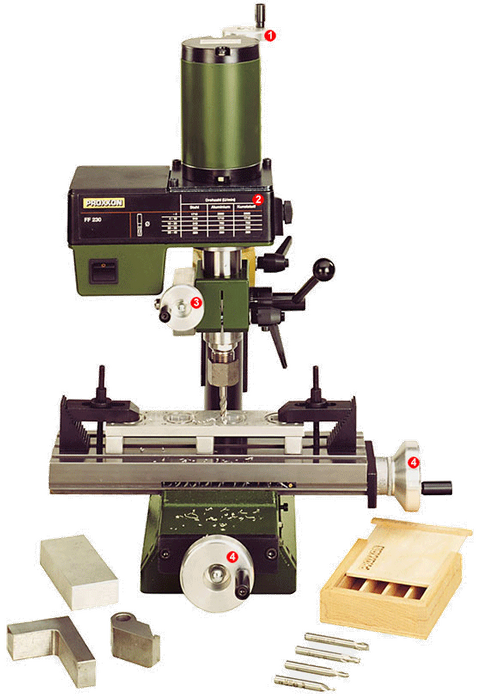

MICRO miller FF-230
The headstock swivels through 360°, indicated on a scale.
Height is adjusted via a zero adjustable handwheel, also used as fine feed when milling (one revolution equals 1mm travel).
The quill and headstock may be locked in position, essential when milling.
The powerful motor effects drive via a poly-V belt, yielding high torques, especially at lower speeds.
Solid table is T-slotted to the MICROMOT standard of 12 x 6 x 5mm
Included:
- Collets of 6 - 8 and 10mm are included.
PRODUCT SPECIFICATION
- Power: 230V (140W)
- Spindle Speed: 280, 550, 870, 1,200 & 2,200rpm
- Travel: 30mm
- Table Size: 270 x 80mm
- Column: 35 x 400mm
- X-Y Travel: 170 x 65mm
- Max. Height: 180mm
- Max. Depth: 130mm
- Overall Height: 500mm
- Weight: 17kg
