PROXXON
MILL/DRILL SYSTEM (BFW-40/E)
Art ID:
20165 #
Description
PRODUCT DESCRIPTION

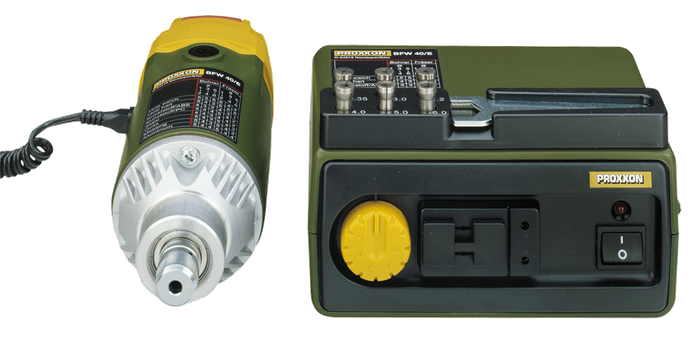

Mill/drill system BFW-40/E, with controller for speeds of 900 - 6,000rpm.
The triple ball bearing armature provides direct drive (no gearing).
Die-cast aluminium head with spindle neck of 43mm (European standard).
Large, easy to use switch with emergency function.
Chart indicates optimum speeds for milling and drilling of various materials.
The motor operates at 40V, supplied from the power pack/ controller.
At this level, the control characteristics are ideal and yield high torque, even at lower speeds.
Includes:
- Triple slit hardened collets covering 2.35, 3, 3.2, 4, 5 and 6mm
- 1x Locking pin
- 1x Spanner
PRODUCT SPECIFICATION
- Power: 230V (250W)
- Spindle Speed: 900 - 6,000rpm
