PROXXON

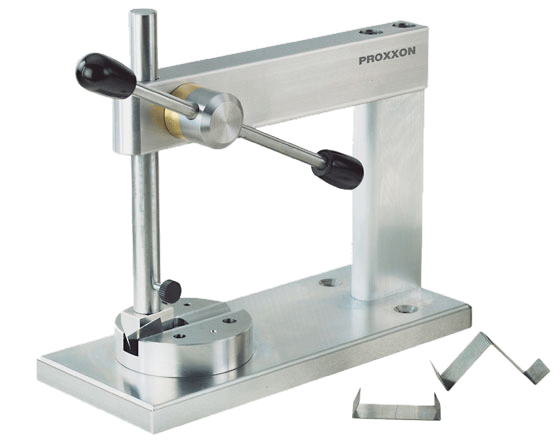

Micro METAL PRESS (MP-120)
Art ID:
27200
Description
PRODUCT DESCRIPTION
PROXXON Micro Metal Press (MP-120) for pressing in, pressing out, riveting, imprinting, edging, bending of wires and sheets.
Embossing, beading and crimping of easy to form materials.
The counterpart is an easily adjustable, hardened revolving plate with all required holes and bottom dies for the above-specified pressing tools.
Toothed rack at one front end with 6mm bore for use of the 8 bottom dies for the above-specified pressing tools.
5 mm bore at the other front end for use of all commercially available riveting tools: simply wind up the toothed rack, take it out and reinsert it upside down.
Supplied with:
- 5 x Cylindrical pressing tools (surface hardened) Ø 3 - 4 - 5 - 6 and 8mm
- 2 x Semi-spherical profile Ø 3 and Ø 9mm
- 1 x 60° square prism for bending sheet metal
PRODUCT SPECIFICATION
- Force Pressure Approx.: 1,000N (100kg)
- Size: 80 x 190mm
- Weight: 2,800g
