HENSSGEN

Single Wheel PULLEY - Fixed Eye

Art ID:
502-25

Description

PRODUCT DESCRIPTION

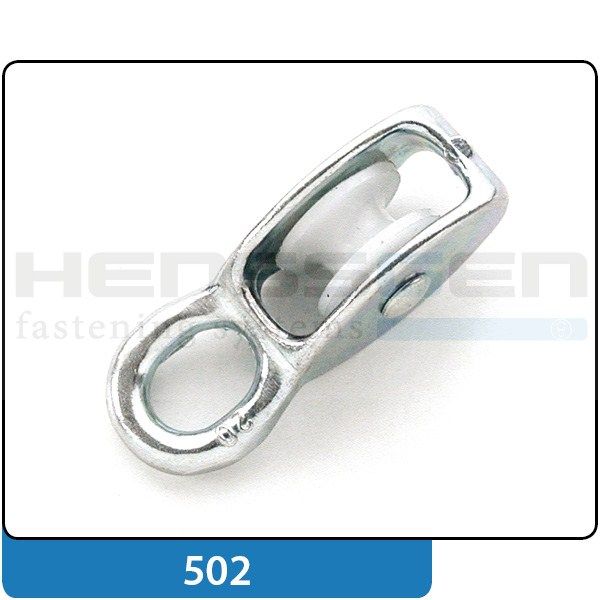

Single Wheel Pulley made from Zinc Plated Die Cast.

PRODUCT SPECIFICATION

  • Rope Diameter: 7mm

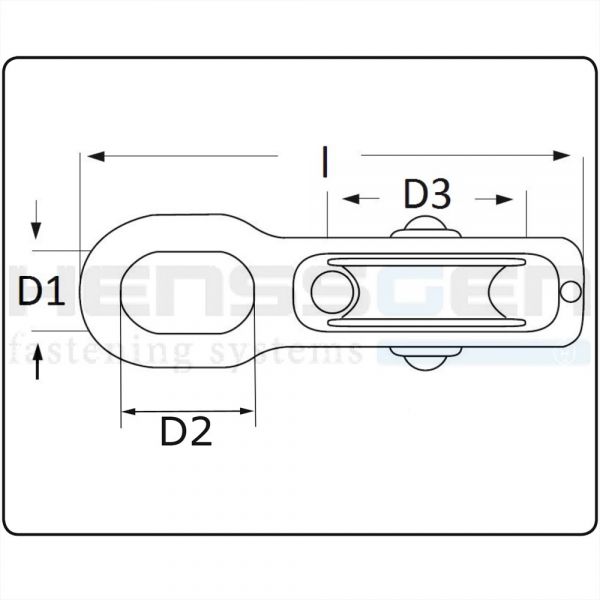

  • Dimension (D1): 12mm
  • Dimension (D2): 17mm
  • Dimension (D3): 25mm
  • Dimension (l): 70mm
  • Breaking Strength: 600 daN
  • Weight: 54g
