HENSSGEN
Open Eye KARABINER - DIN-5299C
Art ID:
245-DIN-070
Art ID:
245-DIN-080
Art ID:
245-DIN-090
Art ID:
245-DIN-100
Art ID:
245-DIN-140
Art ID:
245-DIN-160
Description
PRODUCT DESCRIPTION

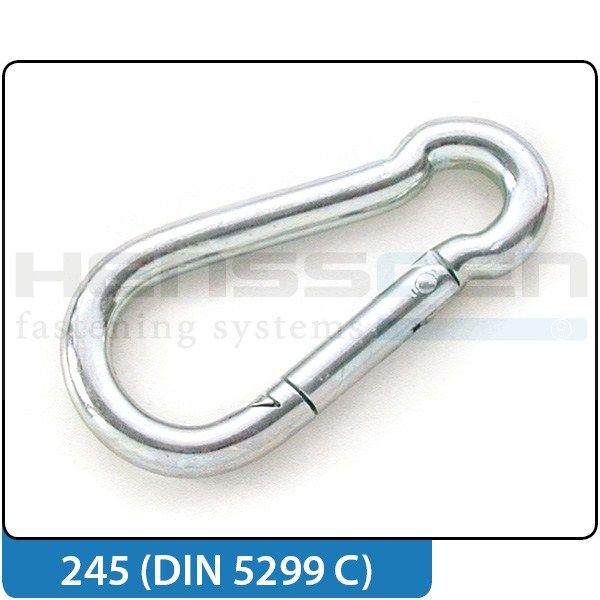

Open eye Karabiner's made from Zinc Plated Steel.
PRODUCT SPECIFICATION

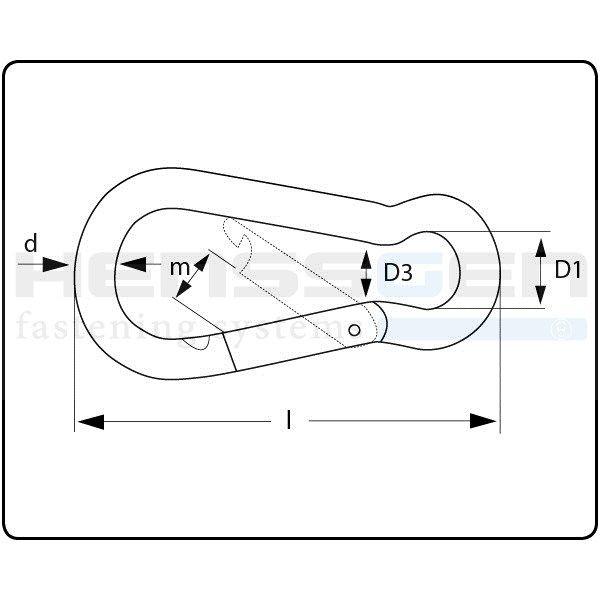

| Art. | d (mm) | D1 (mm) | D3 (mm) | m (mm) | l (mm) | SWL (daN) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 245-DIN-070 | 7 | 10 | 8 | 9 | 70 | 180 | 40 |
| 245-DIN-080 | 8 | 12 | 9 | 10 | 80 | 230 | 62 |
| 245-DIN-090 | 9 | 13 | 10 | 12 | 90 | 250 | 94 |
| 245-DIN-100 | 10 | 15 | 12 | 13 | 100 | 350 | 118 |
| 245-DIN-140 | 12 | 20 | 17 | 21 | 140 | 510 | 246 |
| 245-DIN-160 | 13 | 21 | 19 | 30 | 160 | 600 | 333 |
