HENSSGEN
Triangle Pattern QUICK LINK
Art ID:
509-04
Description
PRODUCT DESCRIPTION

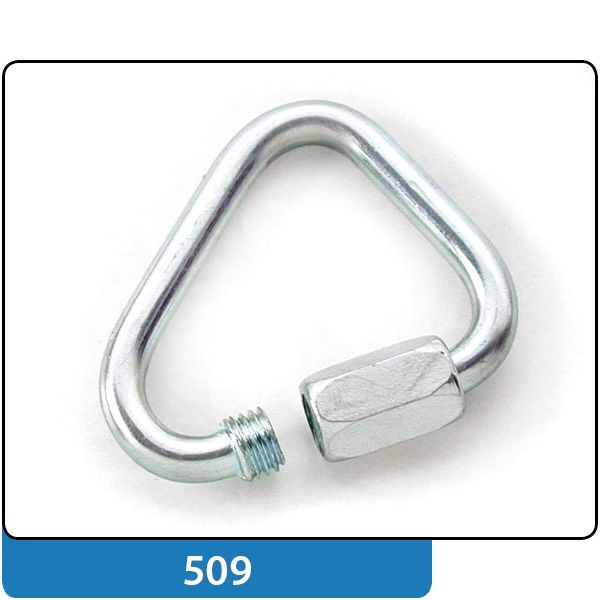

Triangle shaped quick link made of zinc plated steel.
PRODUCT SPECIFICATION

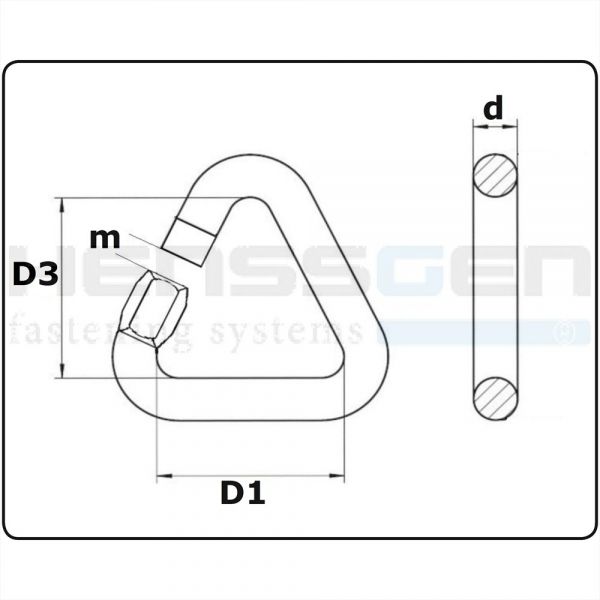

| Art. | d - mm | m - mm | D1 - mm | D3 - mm | BS-daN | SWL-daN | Weight (g) |
|---|---|---|---|---|---|---|---|
| 509-04 | 4 mm | 6 mm | 26 mm | 32 mm | 500 | 100 | 13 |
| 509-06 | 6 mm | 8 mm | 32 mm | 42 mm | 1250 | 250 | 39 |
| 509-08 | 8 mm | 10 mm | 36 mm | 56 mm | 2750 | 550 | 84 |
| 509-10 | 10 mm | 13 mm | 43 mm | 65 mm | 4500 | 900 | 152 |
